Flexible drainage pipe made of PP, PE and PVC-U, DN 50 - DN 200
Advantages:
- unlimited service life due to high chemical and biological resistance
- no moisture absorption of the fiber
- low hydraulic inlet resistance
- The PP filter can be adapted to the soil structure, inter alia by changing the fiber thickness the pore sizes are adjusted to match the grain size or the soil
- The coco filter has a high water absorption capacity and is well suited for slopes affected by desludging such as clayey-sandy soil.
The O90 test value of this filter is 700µm and holds back 90% of all soil particles bigger then 700 µm. Coconut fiber filters are degradable after a long time and have been successfully used in areas where there is a high quantity of iron ochre in the soil.
| DN | Pipematerial | Length | ||
| PVC | PP | PE | ||
| 50 DIN | X | X | 50 m | |
| 50 DIN | X | X | 200 m | |
| 60 DIN | X | X | 50 m | |
| 60 DIN | X | X | 150 m | |
| 65 DIN | X | X | 50 m | |
| 65 DIN | X | X | 150 m | |
| 80 DIN | X | X | X | 50 m |
| 80 DIN | X | X | 100 m | |
| 100 DIN | X | X | X | 50 m |
| 125 DIN | X | X | 50 m | |
| 160 DIN | X | X | 25 m | |
| 200 DIN | X | X | 20 m | |

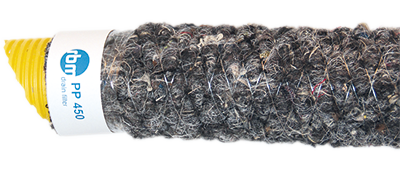

The O90 Test value of this filter is 450 μm and holds back 90% of all soil particles bigger then 450 μm. It consists of a blend of synthetic fibers and can be used for several soil types and circumstances and is manufactured according to the KOMO® Standard.
| DN | Pipematerial | Length | ||
| PVC | PP | PE | ||
| 50 DIN | X | X | 50 m | |
| 50 DIN | X | X | X | 200 m |
| 60 DIN | X | X | 50 m | |
| 60 DIN | X | X | 150 m | |
| 65 DIN | X | X | 50 m | |
| 65 DIN | X | X | 150 m | |
| 80 DIN | X | X | X | 50 m |
| 80 DIN | X | X | X | 100 m |
| 100 DIN | X | X | X | 50 m |
| 125 DIN | X | X | X | 50 m |
| 160 DIN | X | X | X | 25 m |
| 200 DIN | X | X | 20 m | |

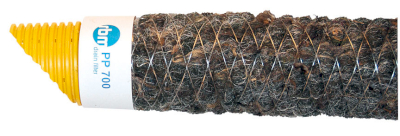

The O90 Test value of this filter is 700 μm and holds back 90% of all soil particles bigger then 700 μm. The PP 700 filter consists of a different blend of synthetic fibers than the PP 450 filter and is mainly used for loamy sands, sandy soils and peaty soils. It is manufactured according to the KOMO® standard.
| DN | Pipematerial | Length | ||
| PVC | PP | PE | ||
| 50 DIN | X | X | 50 m | |
| 50 DIN | X | X | 200 m | |
| 60 DIN | X | X | 50 m | |
| 60 DIN | X | X | 150 m | |
| 65 DIN | X | X | X | 50 m |
| 65 DIN | X | X | X | 150 m |
| 80 DIN | X | X | X | 50 m |
| 80 DIN | X | X | X | 100 m |
| 100 DIN | X | X | X | 50 m |
| 125 DIN | X | X | X | 50 m |
| 160 DIN | X | X | X | 25 m |
| 200 DIN | X | X | X | 20 m |

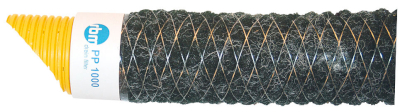

The O90 Test value of this filter is 1000 μm and holds back 90 % of all soil particles bigger then 1000 μm. The PP 1000 filter consists of coarse high class synthetic fibers and is a nondegradable filter that is mainly used in soils with an high iron ochre content.
| DN | Pipematerial | Length | ||
| PVC | PP | PE | ||
| 50 DIN | X | X | 50 m | |
| 50 DIN | X | X | 200 m | |
| 60 DIN | X | X | 50 m | |
| 60 DIN | X | X | 150 m | |
| 65 DIN | X | X | X | 50 m |
| 65 DIN | X | X | X | 150 m |
| 80 DIN | X | X | X | 50 m |
| 80 DIN | X | X | X | 100 m |
| 100 DIN | X | X | X | 50 m |
| 125 DIN | X | X | X | 50 m |
| 160 DIN | X | X | X | 25 m |
| 200 DIN | X | X | X | 20 m |

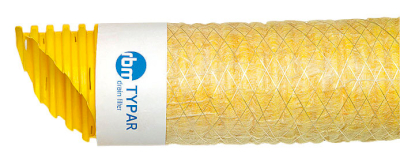

Thin Geotextiles filters used as drainage filters are manufactured by a variety of manufacturers in many versions (Cerex, Typar, knitted sock sleeve).
| DN | Pipematerial | Length | ||
| PVC | PP | PE | ||
| 50 DIN | X | X | 50 m | |
| 50 DIN | X | X | 200 m | |
| 60 DIN | X | X | 50 m | |
| 60 DIN | X | X | 150 m | |
| 65 DIN | X | X | 50 m | |
| 65 DIN | X | X | 150 m | |
| 80 DIN | X | X | 50 m | |
| 80 DIN | X | X | 100 m | |
| 100 DIN | X | X | 50 m | |
| 125 DIN | X | X | 50 m | |
| 160 DIN | X | X | 25 m | |
| 200 DIN | X | X | 20 m | |
